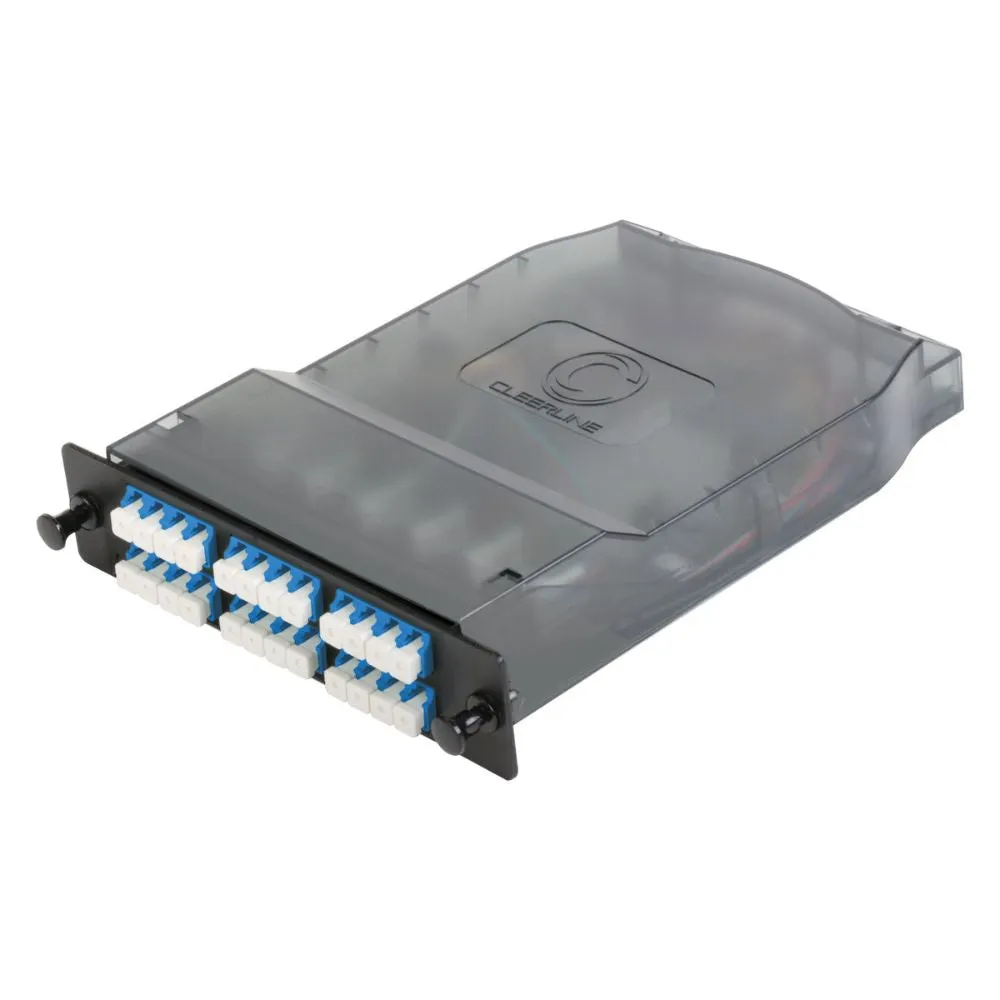

Cleerline SHDLC24-SM-UPC Description
Cleerline HD Splice Cassettes provide an efficient solution for managing fusion-spliced fibers. Each cassette comes preloaded with 12-24 x 900 µm 1 meter long fiber pigtails, eliminating the need for a separate splice tray. Inside the cassette, splice holders and a cable winding area allow cable management and organization. These splice cassettes are sized to fit within any LGX compatible opening.
Cleerline SHDLC24-SM-UPC Includes
- (1) 24 (LC/UPC) Adapter Feed Thru Plate
- (24) Pre Installed Single Mode (LC/UPC) 1 meter 900µm pigtails
- (24) Splice Sleeves
- (24) Fiber splice sleeve holder
Cleerline SHDLC24-SM-UPC Features
- Space-saving design (LGX compatible)
- Transparent housing for easy fiber verification
- Preloaded design with TIA color-coded pigtail
- Pigtail design allows either both ribbon splice and individual fiber splice
- No additional splice trays required
- Cable winding area
Cleerline SHDLC24-SM-UPC Specifications
| Fiber | OS2 |
| Connector Type | LC/UPC |
| Insertion Loss | Max ? 0.3 dB |
| Return Loss | > 60 dB |
| Pigtail Reflectance | RL > 50 dB |
| Accessories | Cable Ties / Heat Shrink Tubes |
